Item
|
Details
|
|
Model
|
RZ10 - 100E - 14ZK
|
|

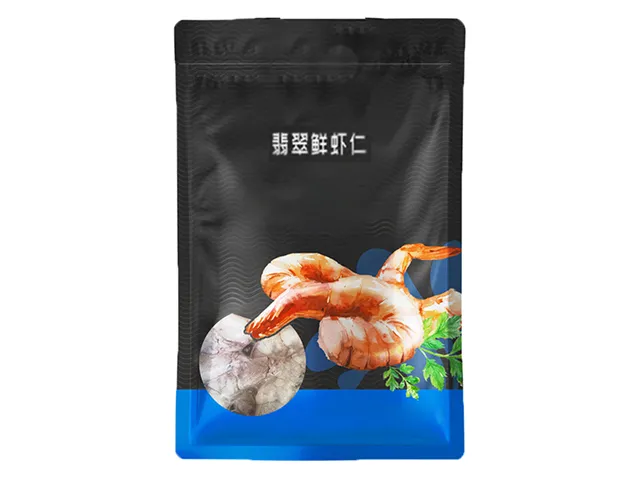

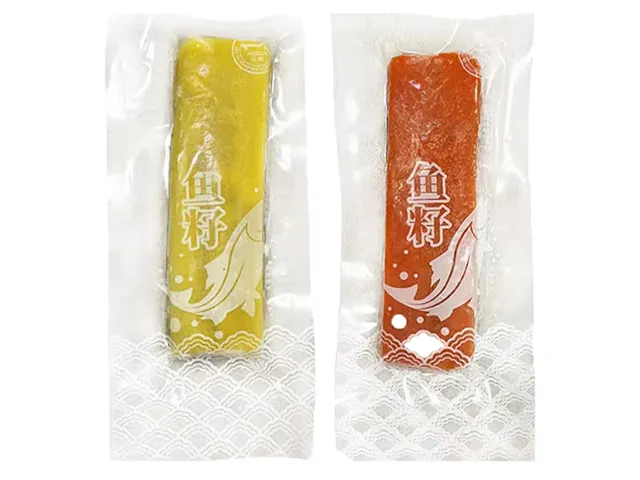

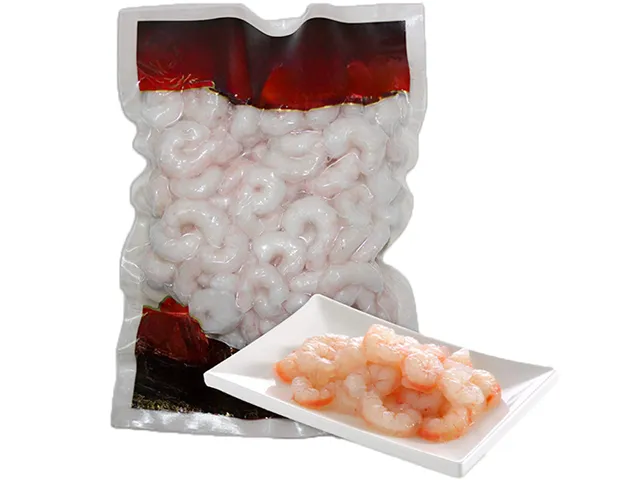

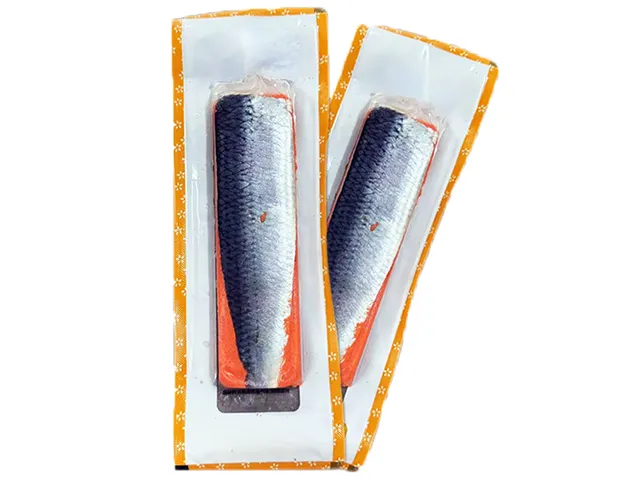

Applicable Bag Types
|
Four - side sealed flat bags
|
|
Bag Size
|
Width: 60 - 100 mm; Length: 80 - 190 mm; Thickness ≤ 50 mm
|
|
Filling Weight
|
≤ 200 g
|
|
Packaging Speed
|
≤ 100 bags/min (depending on product packaging conditions)
|
|
Station Process
|
10 stations for the main machine: 1. Bag loading 2. Idle 3. Bag opening 4. Feeding 5. Stuffing 6. Rotary blowing 7. Bag - mouth clamping 8. Idle 9. Bag transferring 10. Idle 14 stations for vacuum: 1 - 2. Bag receiving 2 - 3. Cover closing 3 - 4. Semi - vacuum 4 - 5. Vacuum 1 5 - 6. Vacuum 2 6 - 10. Pressure maintaining 10. Heat sealing 10 - 12. Cold sealing 12. Venting 12 - 13. Cover opening 13 - 14. Bag dropping
|
|
Weight
|
3000 kg
|
|
Overall Dimensions (LWH)
|
2610 mm1800 mm1800 mm (Length x Width x Height), excluding finished product output
|
|
Total Power
|
11.27 kw (including vacuum pump)
|
|
Driving Power
|
380 V, three - phase five - wire, 50 Hz (Other power supplies can be customized)
|
|
Air Consumption
|
≥ 0.5 m³/min (Compressed air is provided by the customer)
|
|
Serial Number
|
Name
|
Brand
|
Origin
|
|
1
|
PLC
|
Inovance
|
China
|
|
2
|
Touch Screen
|
Inovance
|
China
|
|
3
|
Frequency Inverter
|
Inovance
|
China
|
|
4
|
Main Motor
|
Tongli
|
China
|
|
5
|
Proximity Switch
|
SICK
|
Germany
|
|
6
|
Vacuum Pump
|
Zhongde
|
China
|
|
7
|
Solenoid Valve
|
SMC
|
Japan
|
|
8
|
Cylinder
|
SMC/AIRTAC
|
Japan/China Taiwan
|
 |
 |
 |
 |
 |
