Item
|
Details
|
|
Model
|

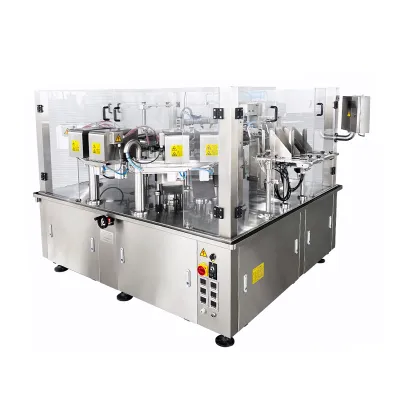

RZ8 - S170B
|
|
Applicable Bag Types
|
Flat bags, back - sealed bags, stand - up bags, zipper bags
|
|
Station Process
|
Eight stations: 1. Bag loading 2. Idle 3. Bag opening 4. Feeding 5. Stuffing 6. Idle 7. Heat sealing 8. Shaping Finished product output
|
|
Bag Size
|
Width: 85 - 170 mm; Length: 150 - 330 mm
|
|
Filling Weight
|
≤ 1000 g
|
|
Packaging Speed
|
≤ 100 bags/min (depending on product packaging conditions)
|
|
Weight
|
3000 kg
|
|
Overall Dimensions (LWH)
|
2320 mm * 2060 mm * 1650 mm (length x width x height, including screen and handwheel)
|
|
Total Power
|
5.41 kw (two heat seals, excluding vacuum pump)
|
|
Driving Power Supply
|
380 V, three - phase five - wire, 50 HZ (other power supplies can be customized)
|
|
Air Consumption
|
≥ 0.4 m³/min (compressed air provided by the customer)
|
|
Serial Number
|
Name
|
Brand
|
Place of Origin
|
|
1
|
PLC
|
Inovance
|
China
|
|
2
|
Touch Screen
|
Inovance
|
China
|
|
3
|
Inverter
|
Inovance
|
China
|
|
4
|
Main Motor
|
Kone
|
China
|
|
5
|
Proximity Switch
|
SICK
|
Germany
|
|
6
|
Vacuum Pump
|
Orion
|
Japan
|
|
7
|
Solenoid Valve
|
SMC
|
Japan
|
|
8
|
Cylinder
|
SMC/Airtac
|
Japan/Taiwan, China
|
