Item
|
Details
|
|
Model
|
RZ10 - 160E
|
|
Applicable Bag Types
|

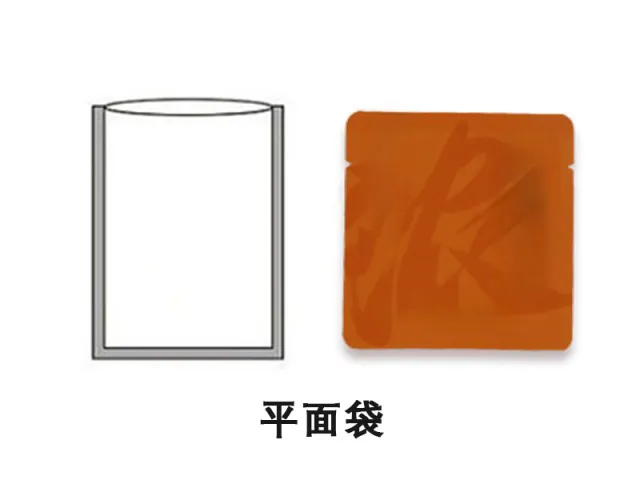

Flat bags, back - sealed bags, stand - up bags, zipper bags
|
|
Station Process
|
Ten stations: 1. Bag loading (slanted) 2. Reserved 3. Bag opening 4. Feeding 1 5. Feeding 2 6. Reserved 7. Reserved 8. Reserved 9. Heat sealing 10. Shaping Side vertical output
|
|
Bag Size
|
W: 60 - 160 mm; L: 80 - 370 mm
|
|
Filling Weight
|
≤ 500 g
|
|
Packaging Speed
|
≤ 100 bags/min (depending on product packaging conditions)
|
|
Weight
|
1450 kg
|
|
Overall Dimensions (LWH)
|
1840 mm * 1610 mm * 1550 mm (length x width x height, including screen and handwheel)
|
|
Total Power
|
3.22 kw (two heat seals, excluding vacuum pump)
|
|
Driving Power
|
380 V, three - phase five - wire, 50 Hz (other power supplies can be customized)
|
|
Air Consumption
|
≥ 0.5 m³/min (compressed air provided by the customer)
|
|
Serial Number
|
Name
|
Brand
|
Place of Origin
|
|
1
|
PLC
|
Inovance
|
China
|
|
2
|
Touch Screen
|
Inovance
|
China
|
|
3
|
Inverter
|
Inovance
|
China
|
|
5
|
Main Motor
|
Kone
|
China
|
|
6
|
Proximity Switch
|
SICK
|
Germany
|
|
7
|
Vacuum Pump
|
Orion
|
Japan
|
|
8
|
Solenoid Valve
|
SMC
|
Japan
|
|
9
|
Cylinder
|
SMC/Airtac
|
Japan/Taiwan, China
|
